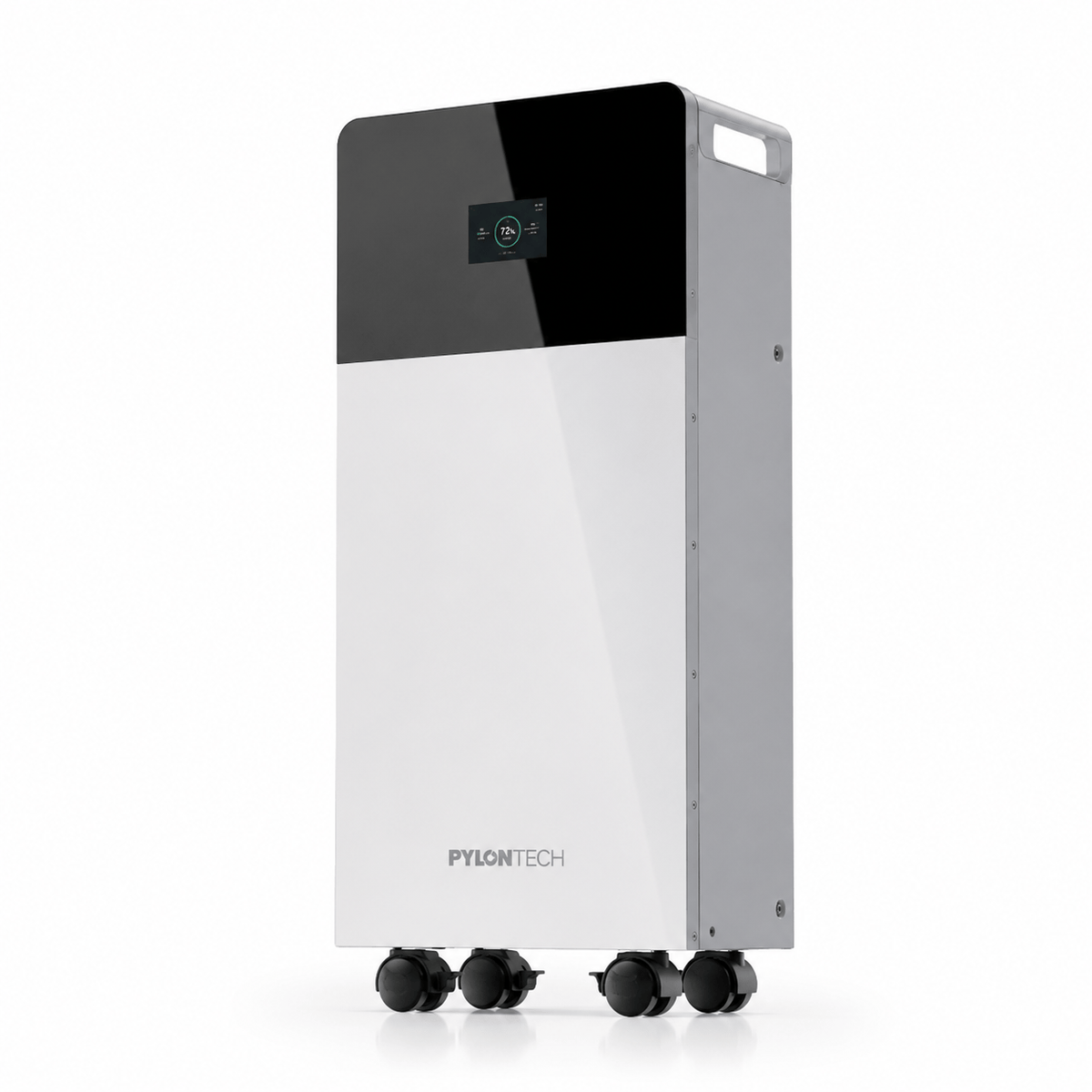

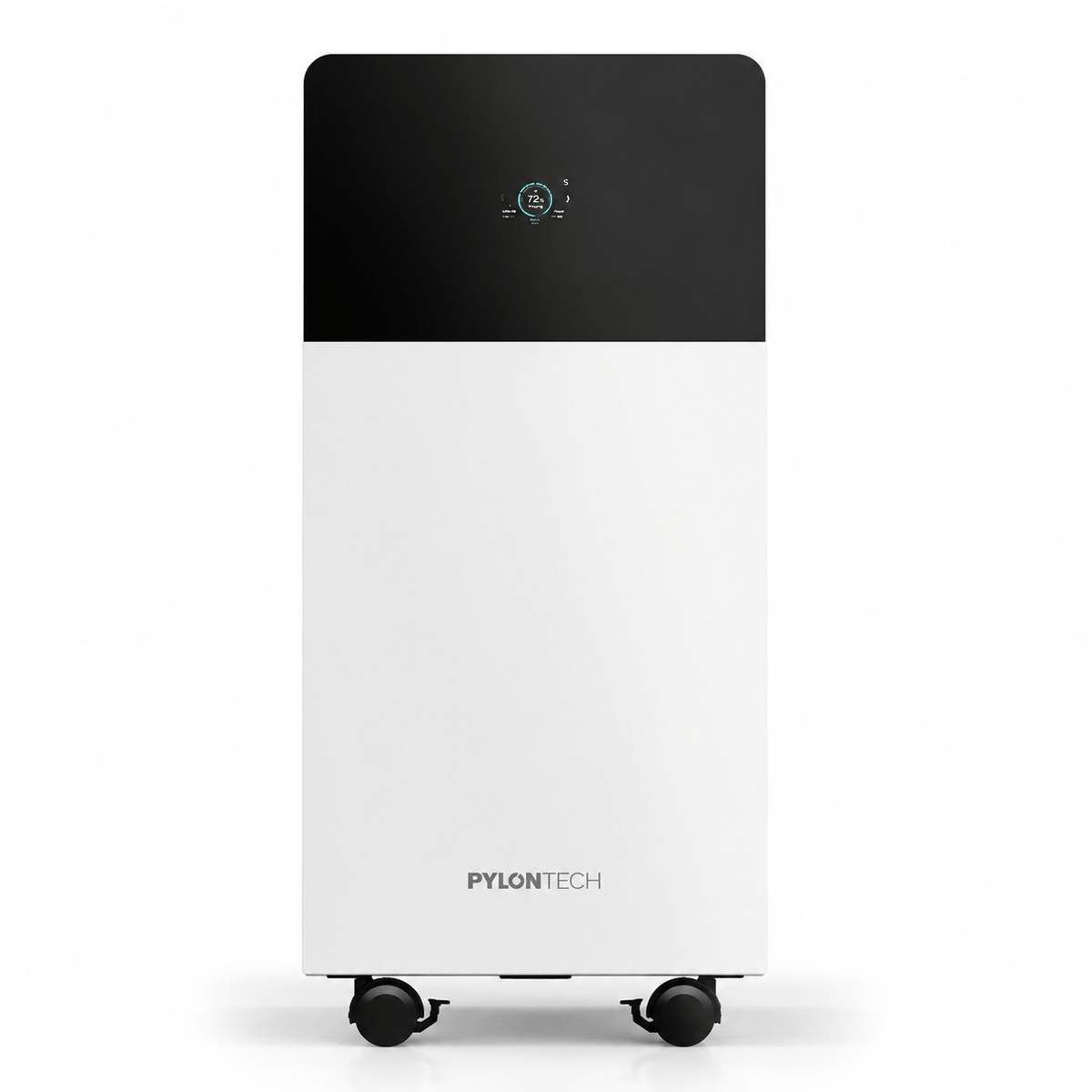

Pylontech Fidus Plus 16 kWh IP65 Lithium Battery

Battery energy storage

3,100,000 IQD

100%Depth of discharge (DoD)
16.076 kWhNominal energy
IP65Enclosure

Share your system details on WhatsApp and we’ll help you choose.

Specifications

Brand	Pylontech
Depth of discharge (DoD)	100%
Nominal energy	16.076 kWh
Enclosure	IP65
Nominal voltage	51.2 V
Series	Fidus Battery Plus
Continuous charge/discharge	Up to 200 A
Communication	CAN / RS485
Dimensions (W × D × H)	435 × 240 × 900 mm
Weight	130 kg
Installation	Floor-standing or wall-mounted

About this product

Pylontech Fidus Plus 16 kWh IP65 Lithium Battery

100% Depth of Discharge (DoD) supported. Access the battery’s full rated energy capacity under the manufacturer’s specified conditions.

Depth of discharge (DoD): 100%
Nominal energy: 16.076 kWh
Enclosure: IP65
Nominal voltage: 51.2 V
Series: Fidus Battery Plus
Continuous charge/discharge: Up to 200 A
Communication: CAN / RS485
Dimensions (W × D × H): 435 × 240 × 900 mm
Weight: 130 kg
Installation: Floor-standing or wall-mounted

Confirm inverter compatibility and installation requirements before purchase.

100% DoD is supported; rated capacity is measured at 25°C and a 0.2C discharge rate. The default minimum state of charge (SOC) is 5% and is adjustable.

System compatibility

Send us your inverter model and system details. We will help confirm compatibility and the right configuration before you order.

What is included?

The product and option you select determine your order. Contact us to confirm any additional accessories, rack, cables or installation you need.

Warranty & delivery

Ask us about the warranty applicable to this model, delivery to your area and any installation requirements before ordering.
